Stunning exteriors for all kinds of commercial property

Suitable for all types of ground floor treatment, the Smart Wall system is a popular choice with installers, architects and fabricators working on educational buildings, shopfronts and various other commercial properties. Its slender aluminium design gives it a smart appearance that allows plenty of natural light to seep inside.

Individual door sashes are available in sizes up to 1150mm x 2500mm, so we can manufacture the system to fill even the largest apertures if necessary. But, whatever you require, you’re guaranteed exceptional weather performance, as demonstrated by the system’s BS 6375 accreditation.

View brochure

Available in a range of colours

We can manufacture the Smart Wall system in a huge range of colours. It also comes with a dual colour option, ideal for applications requiring a different internal and external finish. We’ve listed a number of popular colour options below, but the full colour range is available via the link here.

  • Specification
  • Performance
  • Dimensions
  • Downloads
  • Specification

    Brand Smart-Wall
    Material Aluminium Polyamide
    Dual Colour Yes
    Thermally Broken Yes
    NBS Available Yes


    U Value 1.8W/m²K (Doors) 1.4W/m²K (Screen)
    Document L Compliant Yes
    Kitemark Yes
    BS 6375-1:2009 Yes


    Single Door Max Width (mm) 1150mm (sash)
    Single Door Max Height (mm) 2500mm (sash)
    Single Door Max Weight (kg) 80kg
    Glazing (mm) 24mm – 32mm double or triple glazed units

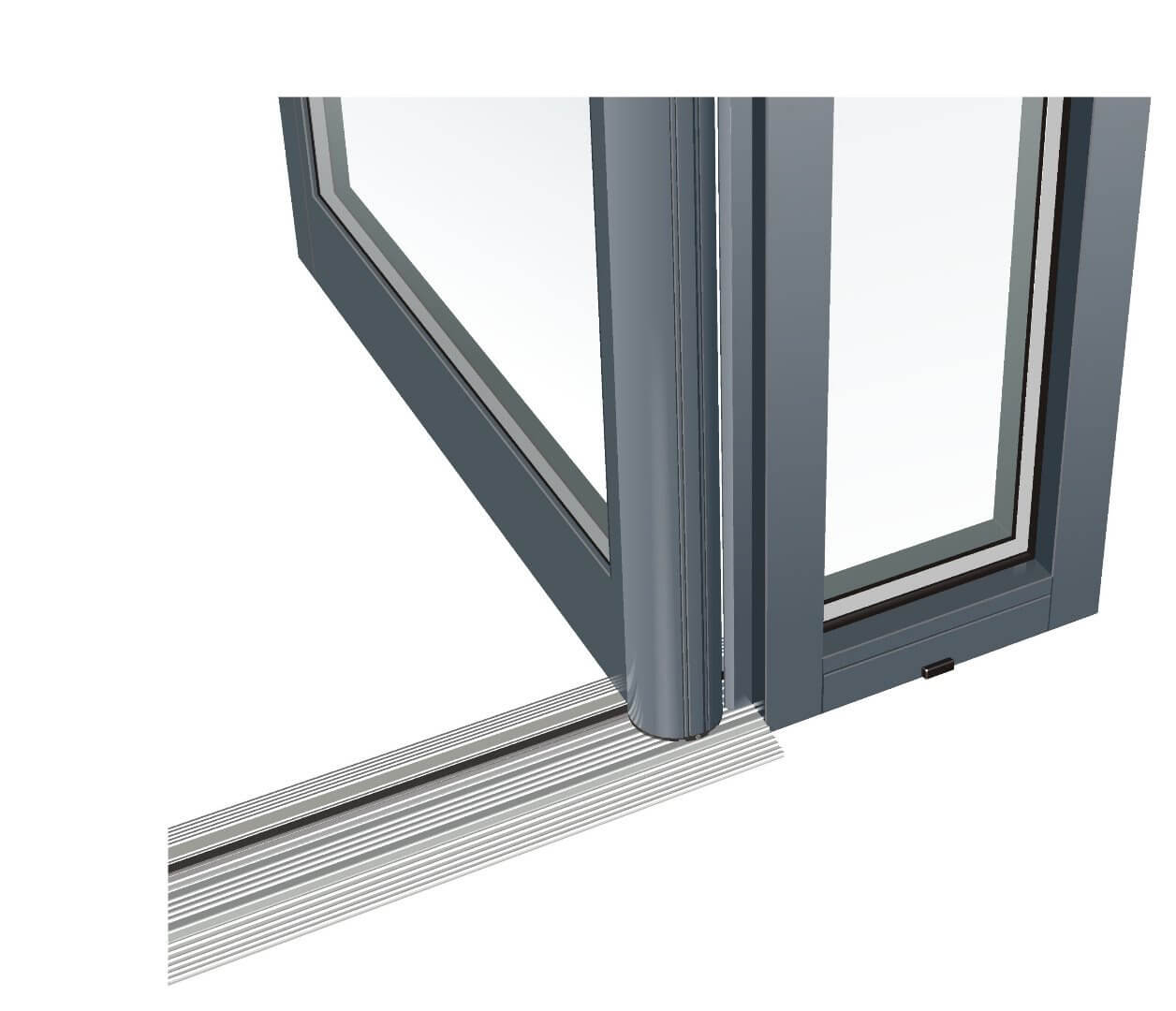

    Smart Wall System

    Outstanding security & thermal performance

    The Smart Wall system is one of the securest of its kind; not only has it been successfully tested to PAS 24:2012 and LPS 1175 level 2, but it’s also accredited to BS EN 1627 Level 3 for enhanced security performance. For shopfronts, educational buildings and other commercial buildings where security is paramount, it’s simply the perfect solution.

    The aluminium framing is also equipped with extended polyamide thermal breaks, and these are combined with double or triple glazed units between 24 – 32mm in size. This ensures for a remarkable thermal performance, Document L compliance and allows for the creation of supremely comfortable interiors.

    Get in touch

    Get in touch today for a free quote

    Simply fill out our online quotation form providing your specifications and a member of our team will be in touch with a quote.

    Get a trade quote

    Free Delivery Nationwide

    Our fast and efficient workforce will deliver anywhere in the UK at no extra cost within 10 working days of ordering.


    High Quality Guaranteed

    Our factory is equipped with the latest machinery ensuring high quality performance & maximum productivity, bringing you a swift turnaround at a competitive price.


    Technical Expertise

    As well as manufacturing, our team of technical experts and specialised installers can offer guidance and assistance to meet your needs.
